Low Headroom Single Girder Overhead Crane

  • Capacity:1~20t
  • Span:7.5~31.5m
  • Lifting height: 6,9,12,18,24,30m
  • Lifting speed: 0.35/3.5,0.7/7,0.8/8m/min or 3.5,7,8m/min
Certification Yuntian Crane has been audited by many international authority such as CE/ISO/SGS/BV/GOST/RTN/TUV and so on.
Packaging Details Our marine crane normal export package:Wooden pallet,Rack wooden,20' and 40' container,Nude or According to your demands.
Delivery Detail Shipped in 20 days after payment.

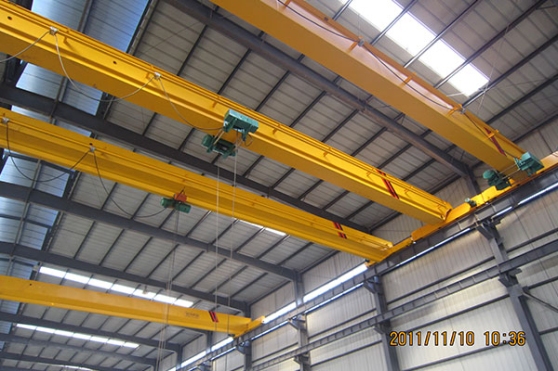

Low Headroom Single Girder Overhead Crane is composed of girder weld by steel plate and I-steel, end girder, electric hoist and travelling mechanism. The electric hoist runs along the lower flange of the I-steel of the girder to accomplish article hoisting. It features light structure and easy installation and maintenance, and is widely used for different places for hoisting, such as factories, warehouses and material yards. It is prohibited to use in the environment with inflammable, explosive and corrosive media.

Low Headroom Single Girder Overhead Crane is designed for low headroom workshop. The difference between them is the way of electric hoist running. The electric hoist of Low Headroom Single Girder Overhead Crane is running at the bottom flange plate of girder and the electric of Single Girder Overhead Crane is running at one side of the girder, which increase the work space of the hook and reduces the workshop height and cost.

If your workshop is narrow or not high enough, choose this kind of crane!



Henan Yuntian Crane CO.,LTD crane could supply not only overhead crane but also the overhead crane solutions, firstly, we will supply overhead bridge crane design, overhead crane manual, overhead crane drawing, overhead crane wiring diagram, overhead crane electrical diagram and overhead crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.

After installation, our technician will indicate to do the load test according to the overhead crane load test procedure, then overhead crane operator training and overhead crane maintenance training, all the procedure will be made according to the overhead crane training videos and overhead crane training PowerPoint,

Henan Yuntian Crane Co,.LTD crane has a lot of honor for overhead crane certification for different overhead crane types.

If you want to know more information about overhead crane, please find the overhead crane attachments, overhead crane pdf, overhead crane catalogue to get mover overhead crane specification and overhead crane regulations from the download center.

The Single girder overhead crane include1 ton bridge crane, 2 ton bridge crane, 3 ton bridge crane, 5 ton bridge crane, 10 ton bridge crane, 15 ton bridge crane, 16 ton bridge crane 20 ton bridge crane.

If you need bigger capacity. Please check the double girder overhead crane.
Capacity
T
3
Span
m
7.5
11.5
14.5
17.5
19.5
22.5
Lifting height
m
6、 9、 12
Lifting speed
m/min
8 or 8/0.8
Hoist travelling speed
m/min
20 、30
Crane travelling speed
m/min
20
30
Total weight
kg
2705
3519
4278
5066
5422
6877
Max. Wheel load
KN
20.1
23.38
24.51
28.05
29.02
32.93
Rail recommended
Model
24kg/m
Total motor power
kw
4.9
Main dimension (mm)
Span(m)
7.5
11.5
14.5
17.5
19.5
22.5
Rail top to crane top
H
1065
1130
1180
1230
1300
Rail top to hook center
H4
-130
-65
-15
35
105
Crane base distance
W
2500
3000
3500
Crane width
B
3000
3500
4000
Hook left limitation
S1
1413
Hook right limitation
S2
1496

Capacity
T
5
Span
m
7.5
11.5
14.5
17.5
19.5
22.5
Lifting height
m
6、 9、 12
Lifting speed
m/min
8 or 8/0.8
Hoist travelling speed
m/min
20 、30
Crane travelling speed
m/min
20
30
Total weight
kg
3175
4000
4366
6066
6514
7507
Max. Wheel load
KN
29.7
33.7
36.47
40.13
41.49
44.27
Rail recommended
Model
24kg/m
Total motor power
kw
8.3
Main dimension (mm)
Span(m)
7.5
11.5
14.5
17.5
19.5
22.5
Rail top to crane top
H
1170
1255
1280
1360
1410
Rail top to hook center
H4
-175
-90
-65
15
65
Crane base distance
W
2500
3000
3500
Crane width
B
3000
3500
4000
Hook left limitation
S1
1405
Hook right limitation
S2
1496

Capacity
T
10
Span
m
7.5
11.5
14.5
17.5
19.5
22.5
Lifting height
m
 6、 9、 12
Lifting speed
m/min
8 or 8/0.8
Hoist travelling speed
m/min
20 、30
Crane travelling speed
m/min
20
30
Total weight
kg
4047
5378
6542
7741
8312
9804
Max. Wheel load
KN
49.78
57.88
62.64
66.83
68.83
73.2
Rail recommended
Model
24kg/m
Total motor power
kw
13.8
Main dimension (mm)
Span(m)
7.5
11.5
14.5
17.5
19.5
22.5
Rail top to crane top
H
1075
1195
1305
1385
1475
Rail top to hook center
H4
-175
-90
-65
15
65
Crane base distance
W
2500
3000
3500
Crane width
B
3000
3500
4000
Hook left limitation
S1
1840
Hook right limitation
S2
1840
